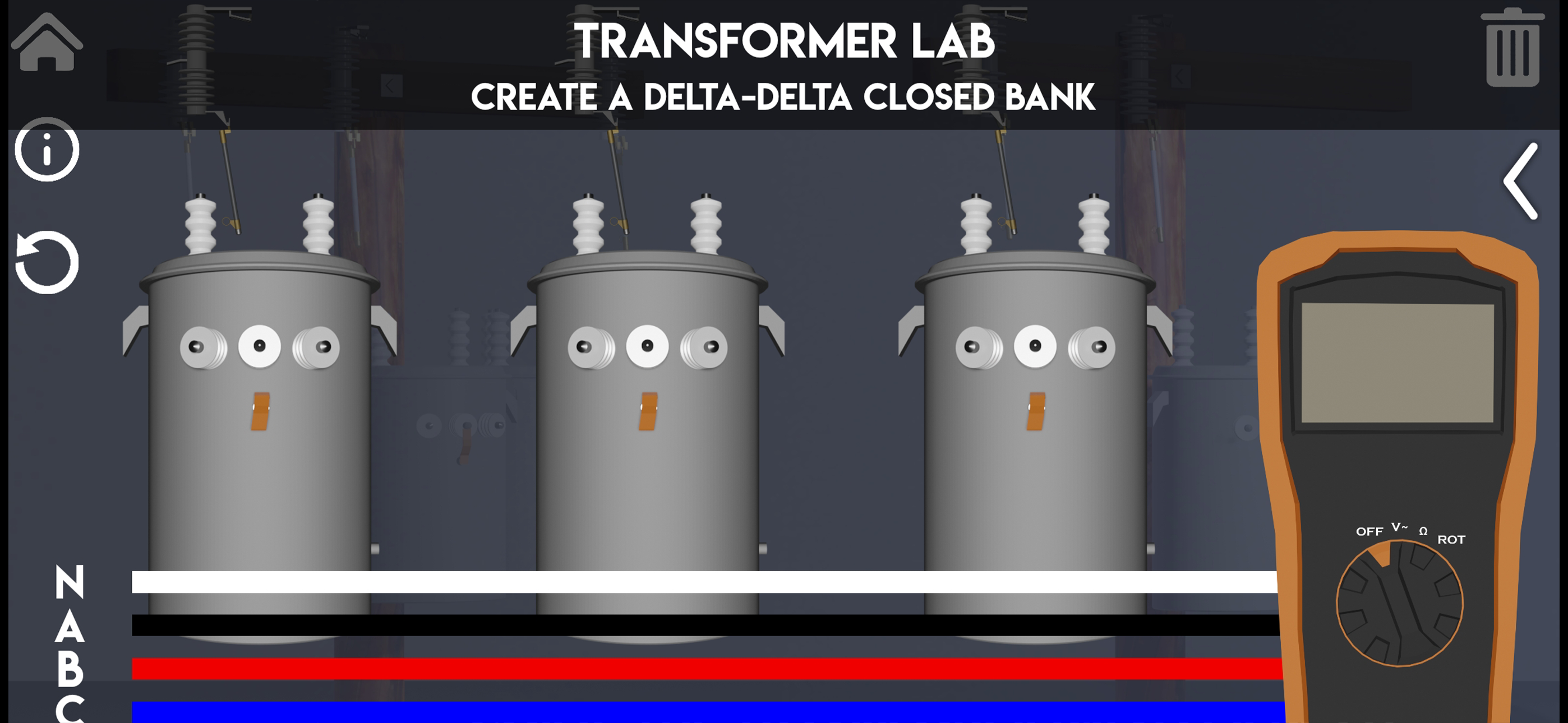

Lineman's Reference - XFMR LAB

I’m using this app to practice my connections for my transformer class and it’s really really great well worth the 10$ but when I wire up a bank correctly it will tell me it’s wrong it only does this with the delta delta or the wye wye I will match them up perfectly with the image but still say it’s wrong I’ve even asked my teacher if they are wired correctly and he said yes. Once that gets fixed this app will be 5/5

Definitely some issues. I’ll wire up a bank correctly and it’ll tell me it’s wrong. I can delete my secondary’s and reconnect them exactly the same way and close the fuses again and it’ll say it’s right. Also, I’ll wire up a wye delta (for example) and it’ll say “this is a correct way to wire a delta delta bank” when obviously it should say wye delta. Lastly the app needs to be run with a horizontal screen but you can’t put the volt meter on the c phase secondary leads because of the layout. Still worth the $10 with the few issues it has

How about being able to select transformers from a list (a.k.a. transformer dock)so to be able to bank subtractive and additives transformers. Also, would like to be able to tie three phase secondary legs on the open secondary lines below transformers instead of tying secondary bushings then dropping one leg to secondary. Just suggestion to make people understand the beast. UPDATE! The developer has contacted me that they are already moving towards these improvements!!
